Car Vehicle Rear View Reverse Bracket Mount Camera Backup Waterproof PAL

Product Description

Features:

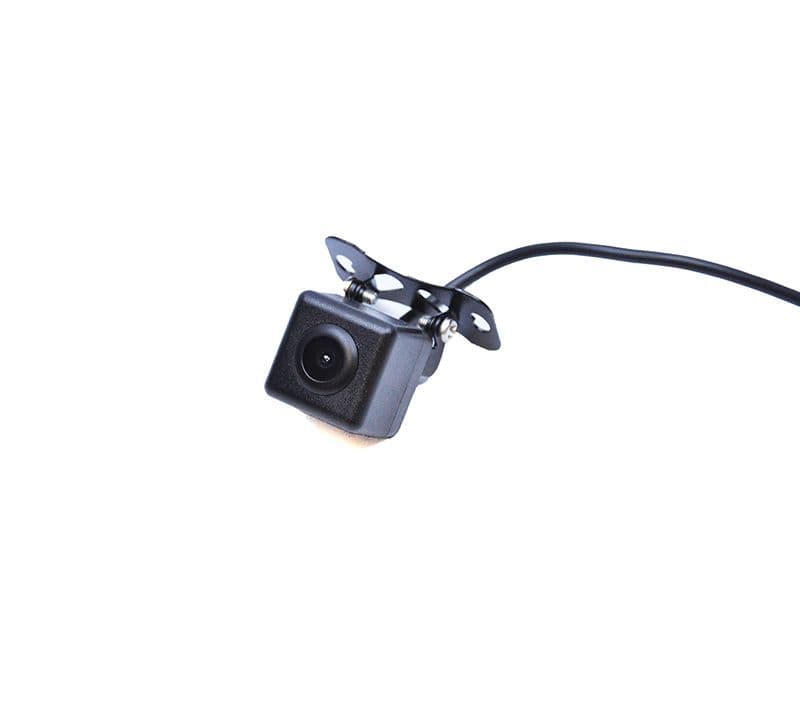

Car Rear View Camera

Used with connected to LCD monitor, DVD Player, rearview mirror with LCD monitor etc, show the rear view

on the LCD screen, make you reverse car more easily and safely

IP68 waterproof level for outdoor and rainy use

Shockproof

Specifics:

Image Sensor: PC7070 1/4 CMOS

TV System: PAL

Effective Pixel: PAL: 628 * 582 Pixel

Scanning System: 2: 1 Interlace

Sync System: Internal

Resolution: 420TV lines

Lens Angle: 2.8mm/120°-1.8mm/170°

Video output: 1.0Vp-p, 75 ohms

SNR: > 48dB

Anti-Shake: Yes

IP Rating: IP68

Current Consumpition: Max 300mA

Power Supply: DV 12V

Operating temperature: -20℃~+60℃（RH95%Max.）

Dimensions: 24 x 25mm

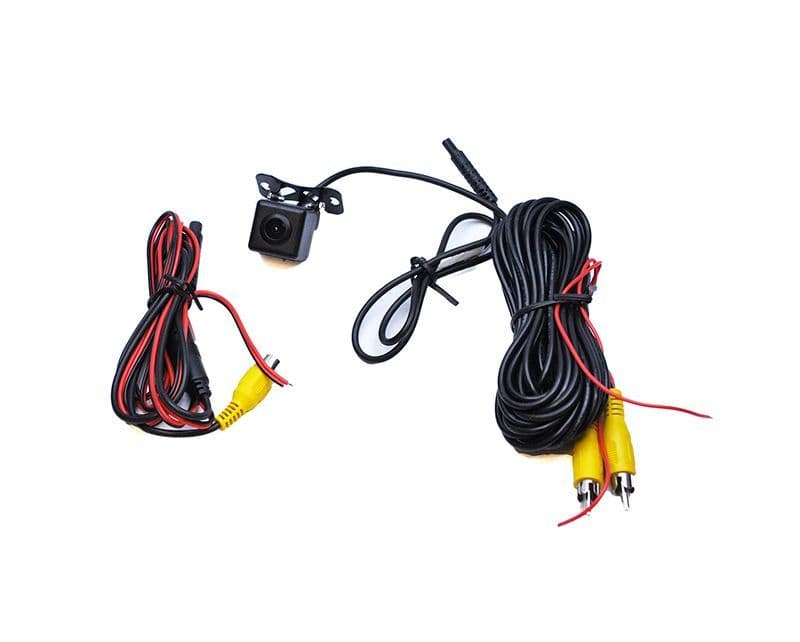

Package:

1 x Camera (monitor screen is not included)

1 x Video Cable

1 x Power Cable

1 x English User Manual

Easy Installation

1. Mount the camera to your car's license plate area, back window, or any other suitable place

2. Adjust the lens of the camera to its best position.

3. Connect power wire (red and black) to your vehicle DC 12V power system.

4. Connect the video output (yellow wire) of the camera to the display in your vehicle.

Specifications

Brand

Quanan

Product Code

MA661-PAL
