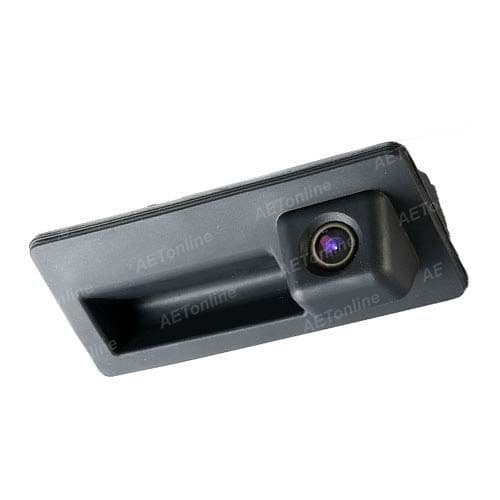

CCD Boot Handle Design For AUDI VW Original Car Rear View Reverse Camera
SPECIFICALLY FITTED FOR VW (Volkswagen) / Audi VEHICLES (for reference only):
Volkswagen:
2009/2010 Passat, Tiguan
2012 Sagitar, 2012 Lavida, Touareg
Audi:
2012/2013 Audi A4L/A6L
Audi S5 Q3 Q5 A8L RS6
Bracket Dimension: 113mm (L) x 48mm (W) x 30mm (D)
Please double check and make sure the model and size (boot handle) fits your car exactly before purchasing.
Unit dimensions: 113mm (length) x 48mm (height) x 30mm (depth - approximately)
This HD CCD high quality Waterproof Rear view Camera with colour wide angle lens is designed to FIT VW / AUDI specific cars and can be directly bolted on; no hole drill or screws needed.
It is a DIY (do-it-yourself) unit. By simply pairing this unit with a LCD monitor or car DVD player through the included AV cable, it help you get a full view of what may show up suddenly in blind spots and makes a great upgrade to your VW / AUDI car.
Special design to replace the boot handle of original vehicles and fit perfectly. No damage installation!
Features:
• HD CCD color sensor

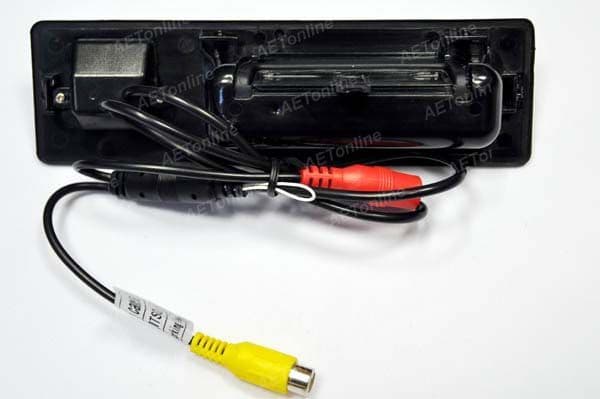

• Pre-wired rear view camera
• Easy reversing and parking
• Directly replace original design perfectly, No hole drill and screw need.
• For VW / AUDI specific models
• Shockproof, Waterproof IP68 and Weather-resistance
• 170 degree wide angle view
• Nightvision, Clear View even in the Night

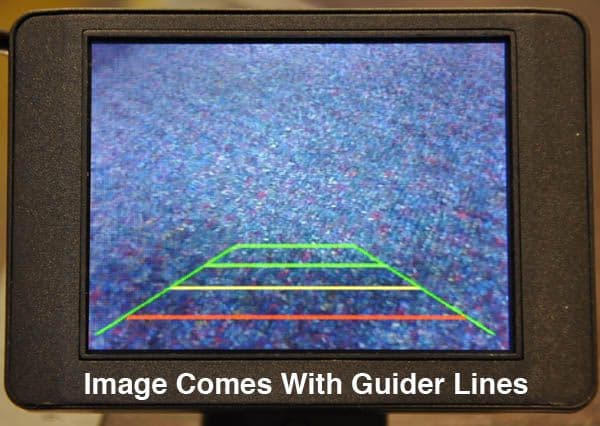

• Image Distance Guider Lines
Specifications:
|
Image Sensor
|
CCD
|
|
TV System
|
PAL/NTSC optional
|
|
Effective Pixels
|
720*576 pixels
|
|
Horizontal Resolution
|
520TVL
|
|
Sensing Area
|
3.6mm*2.7mm
|
|
Shutter Speed
|
1/60-1/10000
|
|
Minimum Illumination
|
0.1Lux/F=1.2 (0Lux with IR ON)
|
|
Video Output
|
1.0v P-P at 75ohm
|
|
Power Supply
|
DC 12V
|
|
Lens angle
|
135°
|
|
Waterproof
|
IP68
|
|
White balance
|
Auto
|
|
Operating Temperature
|
-20℃-75℃,RH 95% MAX
|
|
Storage Temperature
|
-40℃-85℃,RH 95% MAX
|
Note: PAL/NTSC are optional, NTSC is in default and PAL provided at your request
Most monitors are suitable for both PAL and NTSC
Installation Guide:
• Take out your boot handle at the back of your car.
• Fix the camera to where the truck handle was.
• Connect the power of the camera to your car reverse lights - red wire to positive and black wire to negative.
• Connect the video cable of the camera to the extension cord.
• Connect the extension cord to your car monitor.
• The driver will see the images when the car is in reverse shift.
|
