Mercedes Sprinter LED Infrared 3rd Brake Light Rear View Reversing Colour Camera

Stock Status : In Stock
Product Brand : Quanan
Send to a friend

Mercedes Sprinter 2006 – 2015 LED Brake Light Rear View Reversing Camera

12 Month Warranty

Fast despatch from the UK

The camera

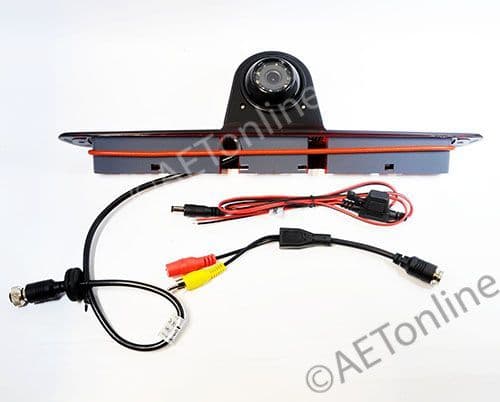

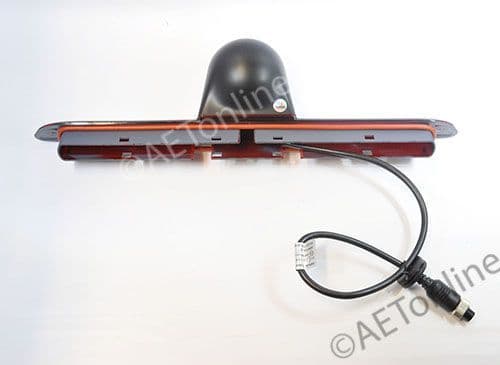

This camera is a bespoke reversing camera designed  specifically for use with the Mercedes-Benz/Dodge Sprinter (2006-2015) and the Volkswagen Crafter (2006-2015). Its unique design means that no holes need to be drilled when mounting; the camera will simply replace your existing rear high level brake light located at the top of the rear doors, integrating seamlessly with the lights original mounting clips/screws. The camera is designed to replicate the size and shape of the existing high level brake light but with the addition of a precision angled camera.

Once correctly installed, the camera will automatically power on as soon as the vehicle is put into reverse delivering a PAL video signal via the included 10 metre RCA video cable signal to any monitor with an RCA reverse camera input

The camera is also compatible with any aftermarket car head unit with a suitable video input. If your aftermarket head unit has a dedicated camera input then the camera can be set up so that the rear-view image can be automatically displayed as soon as the car is put into reverse.

The camera is not designed for use with original factory-fitted monitors or OEM displays, as vehicle manufacturers do not design their equipment with the required RCA video inputs used by aftermarket cameras.

Camera dimensions: (31cm between screw holes, 3.2cm wide) Van hole: (29cm long x 1.5cm wide)


Images Sensors

OV7959 OmniPixel3-HS

Power Supply


Effective Pixels


Min Lux



(TV Line) 420

TV system


Lens Angle (Deg.)

170 Wide Angle

IP rating


White Balance
