Rear Colour Wide View Reversing Parking Camera For Benz C Class and E Class (MA6102)

Stock Status : In Stock
Product Code : MA6102
Product Brand : QUANAN
SIGNAL SYSTEM

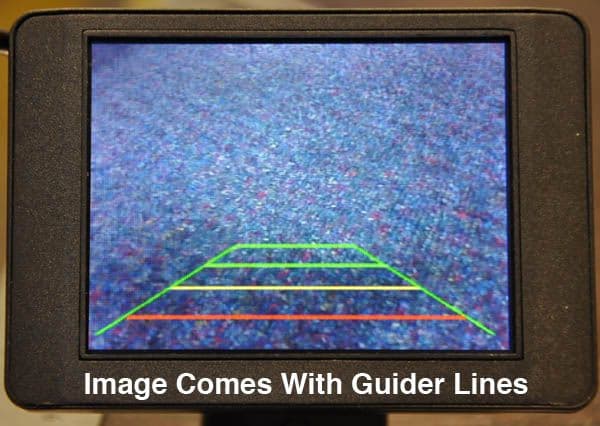

GUIDELINES
£24.95
Send to a friend

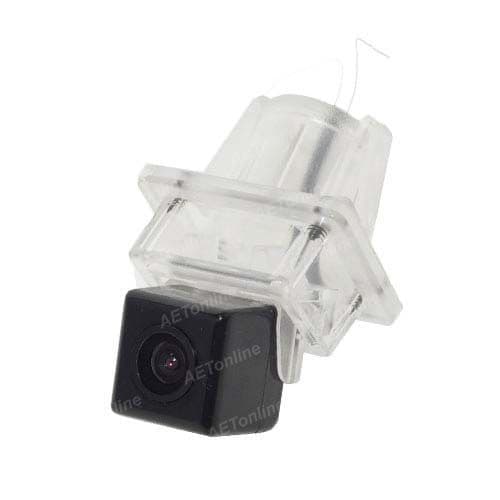

Rear Colour Wide View Reversing Parking Camera For Benz C Class and E Class

Camera design for:
  Benz C Class and E Class


Easy installation just replace the number plate light unit by using this item.
This camera is water proof and provides a quality colour image, the image is clear even at night as a result of the night vision capabilities.
This camera is well suited to parking with it's wide angle lens ( 170 º )

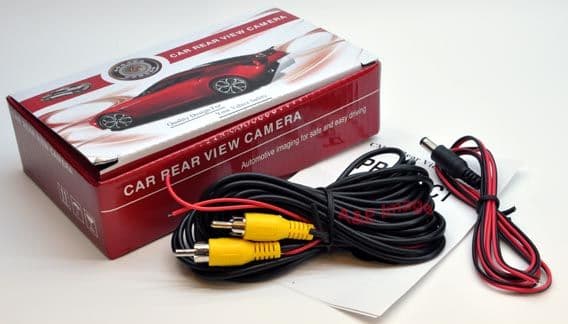

What in the box:

1. Camera with 1.5 M power cable
2. 5 meters length video cable
3 . Instruction manual

Technical Data:
Sensor
CMD
TV System
NTSC

Effective Pixel
658x462 pixels

Electronic Shutter
1/60 - 1/100,000sec

Scanning System: 2:1 Interlace
Sync System: Internal
Resolution: 420 TV Lines
Lens Angle: 1.8mm/170 º
Sensor Area: 5.961mmX4.276mm
Video Output: 1.0Vp-p,750hm
S/N Ratio: More than 48db
Water-proof: IP67-IP68
Power Supply: DC 12V ± 10%
Operating Temperature: -20 º C - 60 º C (RH95%Max)
Storage Temperature: -30 º C - 60 º C (RH95%Max)
Other Features: Automatic White Balance/ Agc and BLC
