REAR VIEW REVERSING PARKING CAMERA LED FOR VOLVO S80L S40L S80 S40 (MA6045)

Product Description

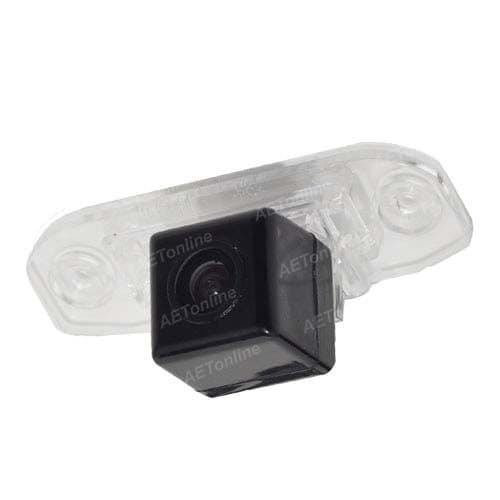

REAR VIEW REVERSING PARKING CAMERA LED FOR VOLVO S80L S40L S80 S40

Camera design for:

VOLVO S80L, S40L, S80, S40

Bracket size: 79mm (L) x 25mm (W)

Easy installation just replace the number plate light unit by using this item.
This camera is water proof and provides a quality colour image, the image is clear even at night as a result of the night vision capabilities.
This camera is well suited to parking with it's wide angle lens ( 170 º )

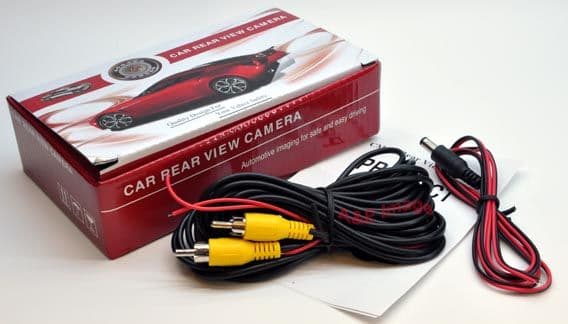

What in the box:

1. Camera with 1.5 M power cable
2. 5 meters length video cable
3 . Instruction manual

Technical Data:
Sensor
CMD
TV System
NTSC

Effective Pixel
658x462 pixels

Electronic Shutter
1/60 - 1/100,000sec

Scanning System: 2:1 Interlace
Sync System: Internal
Resolution: 420 TV Lines
Lens Angle: 1.8mm/170 º
Sensor Area: 5.961mmX4.276mm
Video Output: 1.0Vp-p,750hm
S/N Ratio: More than 48db
Water-proof: IP67-IP68
Power Supply: DC 12V ± 10%
Operating Temperature: -20 º C - 60 º C (RH95%Max)
Storage Temperature: -30 º C - 60 º C (RH95%Max)
Other Features: Automatic White Balance/ Agc and BLC

Specifications

Brand

QUANAN

Product Code

MA6045

Delivery & Returns

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed feugiat sem id nunc finibus, et facilisis dolor aliquam. Donec ex felis, scelerisque ut facilisis et, convallis nec magna. Nulla vel ex eget lacus imperdiet mattis convallis quis leo. Mauris laoreet vulputate mauris. Vestibulum in blandit enim. Vivamus consectetur mattis dapibus. Nullam ultricies malesuada dignissim.

REAR VIEW REVERSING PARKING CAMERA LED FOR VOLVO S80L S40L S80 S40 (MA6045)

Name: REAR VIEW REVERSING PARKING CAMERA LED FOR VOLVO S80L S40L S80 S40 (MA6045) - WITH, PAL
Brand: QUANAN
SKU: MA6045
Price: 24.95 GBP
Availability: InStock

Item in Stock (196723 Available)

Product Code MA6045

SIGNAL SYSTEM

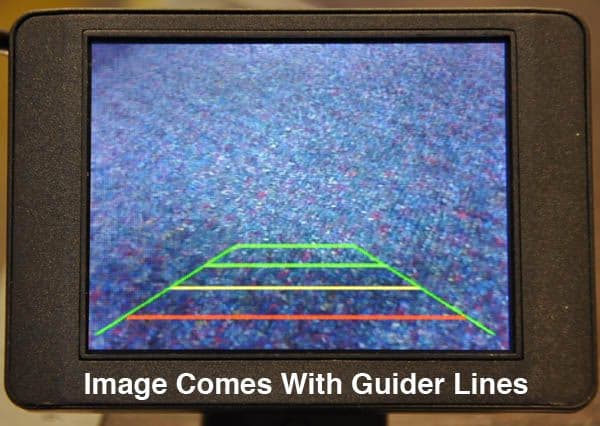

GUIDELINES
