Rear View Reversing Parking Colour Camera LED For Audi A4 TT A5 Q5 VW New Passat (MA6027)

Product Description

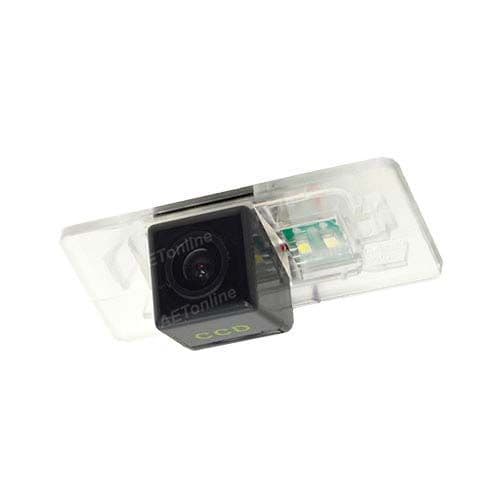

Rear View Reversing Parking Colour Camera LED For Audi A4 TT A5 Q5 VW New Passat

Camera design for:
Audi A4 A5
Audi TT Q5
VW New Passat

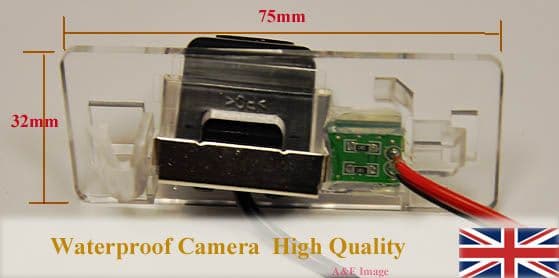

This camera can replace your number plate light unit and comes with 2 LED lights

Easy installation: just replace the number plate light unit by using this item.
This camera is water proof and provides a quality colour image, the image is clear even at night as a result of the night vision capabilities.

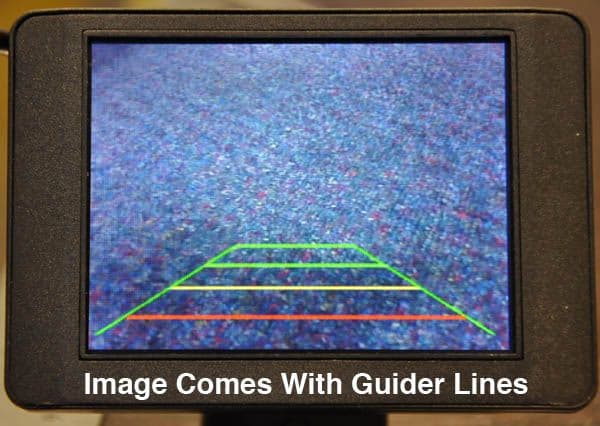

This camera is well suited to parking with it's wide angle lens ( 170 º )

What in the box:

1. Camera with 1.5 M power cable
2. 5 meters length video cable
3 . Instruction manual

Technical Data:
Sensor
CMD
TV System
NTSC

Effective Pixel
658x462 pixels

Electronic Shutter
1/60 - 1/100,000sec

Scanning System: 2:1 Interlace
Sync System: Internal
Resolution: 420 TV Lines
Lens Angle: 1.8mm/170 º
Sensor Area: 5.961mmX4.276mm
Video Output: 1.0Vp-p,750hm
S/N Ratio: More than 48db
Water-proof: IP67-IP68
Power Supply: DC 12V ± 10%
Operating Temperature: -20 º C - 60 º C (RH95%Max)
Storage Temperature: -30 º C - 60 º C (RH95%Max)
Other Features: Automatic White Balance/ Agc and BLC

Specifications

Product Code

MA6027
