Video Parking Reversing kit 3.5" LCD & Nightview Camera

Stock Status : In Stock
Product Code : 3036+20036
Product Brand : A&E
Send to a friend

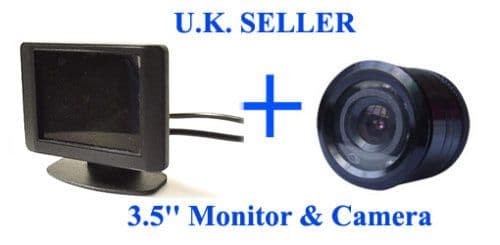

This package provides a reliable and stylish rear parking system setup and comes complete with a 3.5" TFT monitor and a 25 mm water proof camera that mounts onto the bumper.

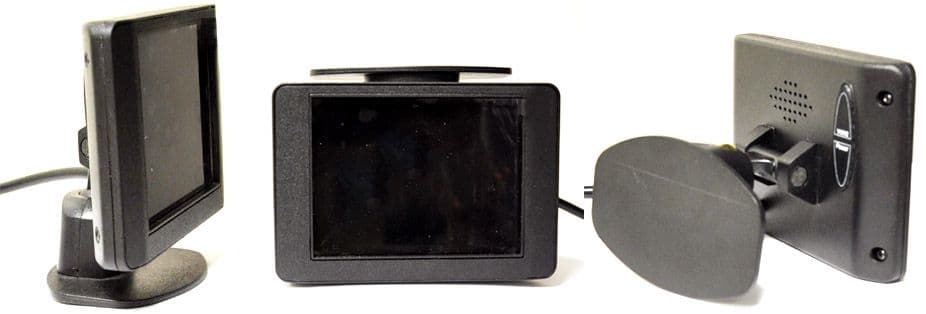

The TFT screen can double as a standard monitor to function as the centre piece of a car's entertainment; the monitor has dual video input sockets, allowing a game console or dvd player to be connected to the monitor. The intelligent video switcher allows the video input source to be switched to the camera feed when the reverse gear is engaged. The monitor is not only very well equipped but it fits flush on many standard dashboards to give a stylish yet OEM look.


The camera is a 25 mm water-proof camera based on the OV7910 CMOS sensor to provide crisp, clear image quality, the camera has automatic IR night vision and mirror/normal image switch modes to provide an excellent image whatever the lighting conditions.


Kit includes:

  1. Camera with 1.5M power cable, and 5M video output socket and mirror/normal image switch
  2. 25 mm drill saw
  3. User manual
  4. 3.5 Inch LCD Display
  5. Intelligent video switcher


Technical Specifications (Display):

  1. Screen type: TFT LCD
  2. Screen size: 3.5" Colour monitor
  3. Resolution: 480 (H) x 234 (V)
  4. Aspect ratio: 4:3
  5. Power consumption (Max): 3 Watts
  6. Operating temperature: -20ºC ~ 65ºC
  7. Dimensions: 72 (L) x 52.5 (D) mm


Technical Specifications (Camera)
     1. Image Sensor: OV7949, 1/3" COLOR
     2. Effective Pixels: PAL: 628×582
     3. Protection Category: IP67-IP68
     4. Signal System: PAL
     5. Resolution: 380 TV Lines
     6. Shutter Speed: 1/50-60~1/15000 second
     7. S/N Ratio: 48db
     8. Minimum Illumination: < 1.0Lux
     9. Video Output: 1.0Vp-p, 75 OHM
    10. Power Supply: DC12V ± 20%
    11. Current Consumption: 70mA
    12. Operating Temperature: -20ºC ~ 65ºC
    13. Lens Angle: 120º
    14. Dimension: 25 (D)x37 (L)mm
