Video Parking Reversing kit colour Camera 3.5" LCD UK

Stock Status : In Stock
Product Code : 3036+20036
Product Brand : A&E
£69.99
Send to a friend

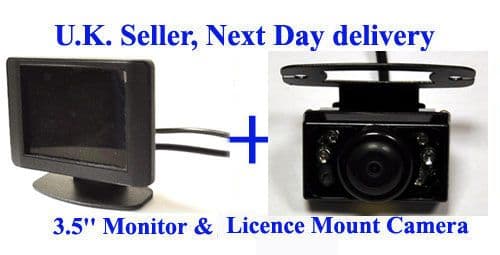

3.5" TFT Monitor + 25mm water proof quality bumper camera
[3.5/20036nv]

This package provides a reliable and stylish rear parking system setup and comes complete with a 3.5" TFT monitor and a 25 mm water proof camera that mounts onto the bumper.

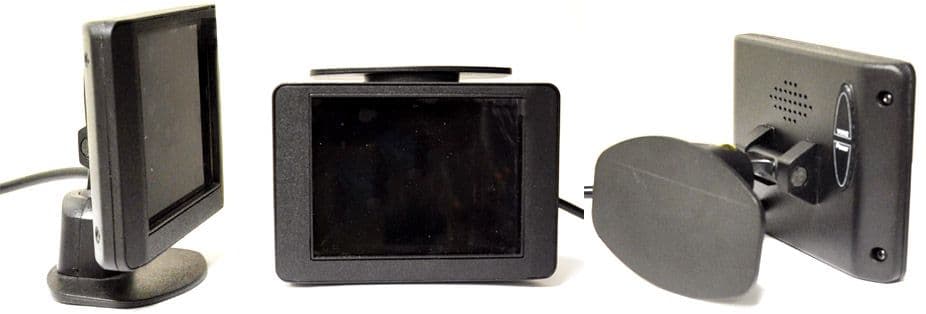

The TFT screen can double as a standard monitor to function as the centre piece of a car's entertainment; the monitor has dual video input sockets, allowing a game console or dvd player to be connected to the monitor. The intelligent video switcher allows the video input source to be switched to the camera feed when the reverse gear is engaged. The monitor is not only very well equipped but it fits flush on many standard dashboards to give a stylish yet OEM look.

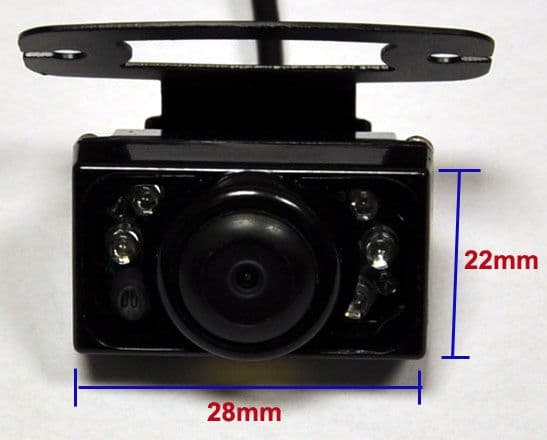

The camera is a 25 mm water-proof camera based on the OV7910 CMOS sensor to provide crisp, clear image quality, the camera has automatic IR night vision and mirror/normal image switch modes to provide an excellent image whatever the lighting conditions.



Kit includes:

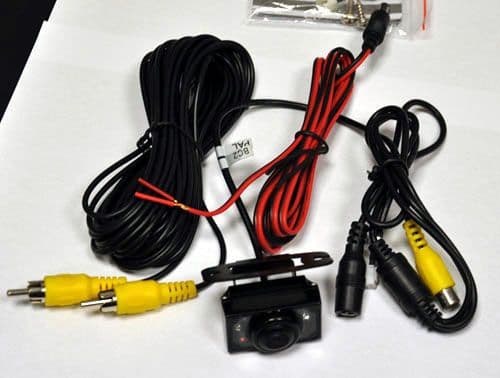

  1. Camera with 1.5M power cable, and 5M video output socket and mirror/normal image switch
  2. 25 mm drill saw
  3. User manual
  4. 3.5 Inch LCD Display
  5. Intelligent video switcher



Technical Specifications (Display):

  1. Screen type: TFT LCD
  2. Screen size: 3.5" Colour monitor
  3. Resolution: 480 (H) x 234 (V)
  4. Aspect ratio: 4:3
  5. Power consumption (Max): 3 Watts
  6. Operating temperature: -20ºC ~ 65ºC
  7. Dimensions: 72 (L) x 52.5 (D) mm



Technical Specifications (Camera):

  1. Image sensor: OV7910, 1/3" Colour
  2. Signal: PAL
  3. Effective pixels: 628 x 582
  4. Water-proof category: IP67-IP68
  5. Resolution: 380 TV Lines
  6. Shutter speed: 1/50-60 ~ 1/15000 Second
  7. S/N Ratio: 48db
  8. Minimum illumination: <1.0 Lux
  9. Video Output: 1.0Vp-p, 75 OHM
  10. Power supply: DC12V +/-20%
  11. Current consumption: 70mA
  12. Lens angle: 90º
  13. Operating temperature: -20ºC ~ 65ºC
  14. Dimensions: 25 (D) x 37 (L) mm
