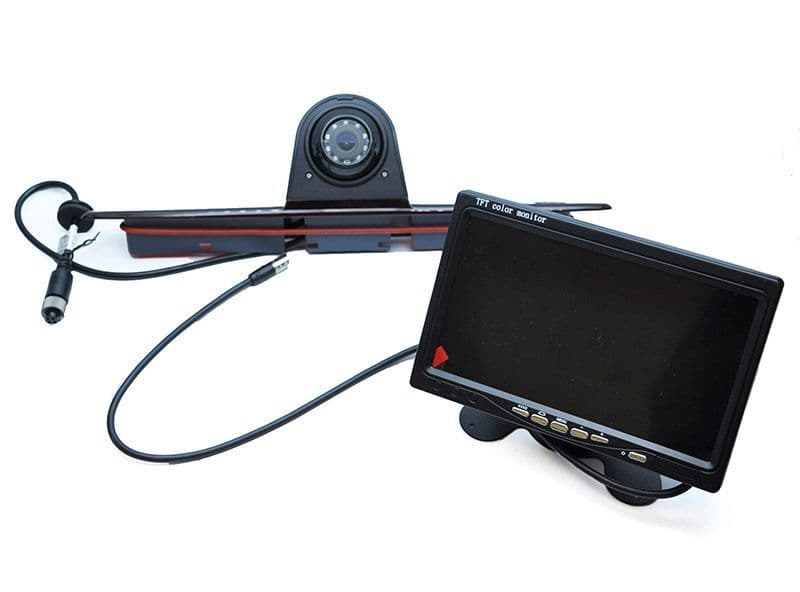

Wireless Mercedes Sprinter LED Brake Light Rear View Reversing Camera 7 inch Dashboard Monitor Kit

Product Description

Wireless Rear View Reversing Camera for

Mercedes Sprinter Van IR LED with Brake Light 2006 - 2019 + 7" Dashboard Monitor

12 Month Warranty

Fast despatch from the UK

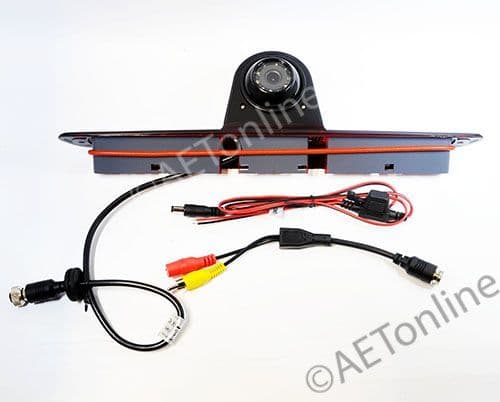

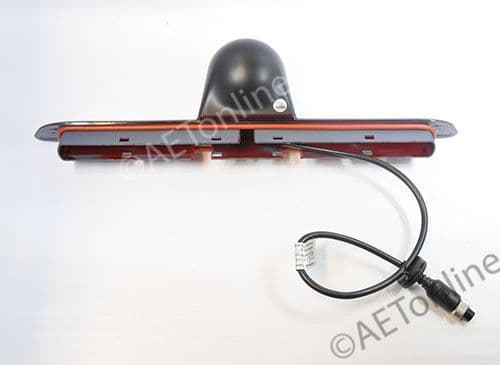

This camera is a bespoke reversing camera designed specifically for use with the

Mercedes-Benz/Dodge Sprinter (2006-2019) and the Volkswagen Crafter(2006-2019).

Its unique design means that no holes need to be drilled when mounting; the camera will

simply replace your existing rear high level brake light located at the top of the rear doors,

integrating seamlessly with the lights original mounting clips/screws and wiring and maintaining

illumination with integrated LED bulbs. The camera is designed to replicate the size and shape

of the existing high level brake light but with the addition of a precision angled camera.

Once correctly installed, the camera will automatically power on as soon as the vehicle

is put into reverse delivering a PAL video signal.

The camera is also compatible with any aftermarket car head unit with a suitable video input.

If your aftermarket head unit has a dedicated camera input then the camera can be set up so that the

rear-view image can be automatically displayed as soon as the car is put into reverse.

The camera is not designed for use with original factory-fitted monitors or OEM displays,

as vehicle manufacturers do not design their equipment with the required RCA video inputs

used by aftermarket cameras.

Camera dimensions: (31cm between screw holes, 3.2cm wide)

Images Sensors	OV7959 OmniPixel3-HS
Power Supply	DC12V
Effective Pixels	800 x 600
Min Lux	1Lux
Resolution	(TV Line) 420
TV system	PAL/NTSC
Lens Angle (Deg.)	170 Wide Angle
IP rating	68
White Balance	Auto

The Monitor Features

100% Brand New, with 7 inch LED backlight colour TFT LCD display monitor.

Can be either mounted on the headrest or use the dashboard stand supplied

Equipped with 2 AV input. AV1 connects to car DVD, VCR and other video equipment, AV2 to car backup camera.

Works perfectly with Car DVD, VCD, camera, STB, satellite receiver, and other video equipment.

When in reversing, the monitor will start up automatically, and synchronously

display the video from rear view camera, and it will close itself after that.

Supports screen rotation

The brightness, contrast and colour can be adjusted.

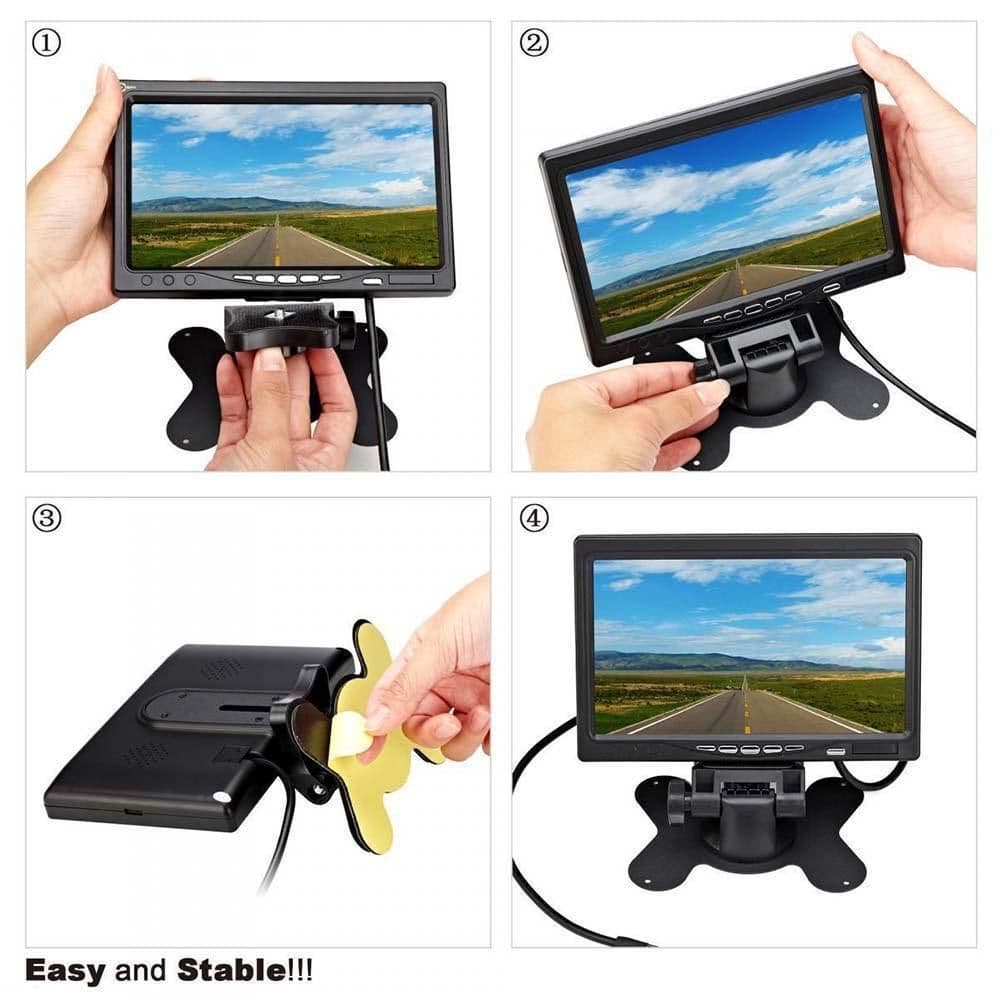

There are 2 ways to install: standing or mounting.

Low power consumption.

Comes with an IR remote controller for a easy operation.

Specifications:

Screen Size: 7 inch

Screen Ratio: 16:9/4:3

Resolution: 800 x 600Pixels

Contrast Ratio: 100:1

Video Frequency: PAL/NTSC

Housing Material: ABS

Power Supply: DC 12V

Working Temperature: 0 ~ 80 degree

Storage Temperature: -10 ~ 80 degree

Product Dimensions (L x W x D): 193 x 135 x 25mm

What's included:

Sprinter Camera

7" Clip-on Monitor

Power cables

4 pin to AV adaptor

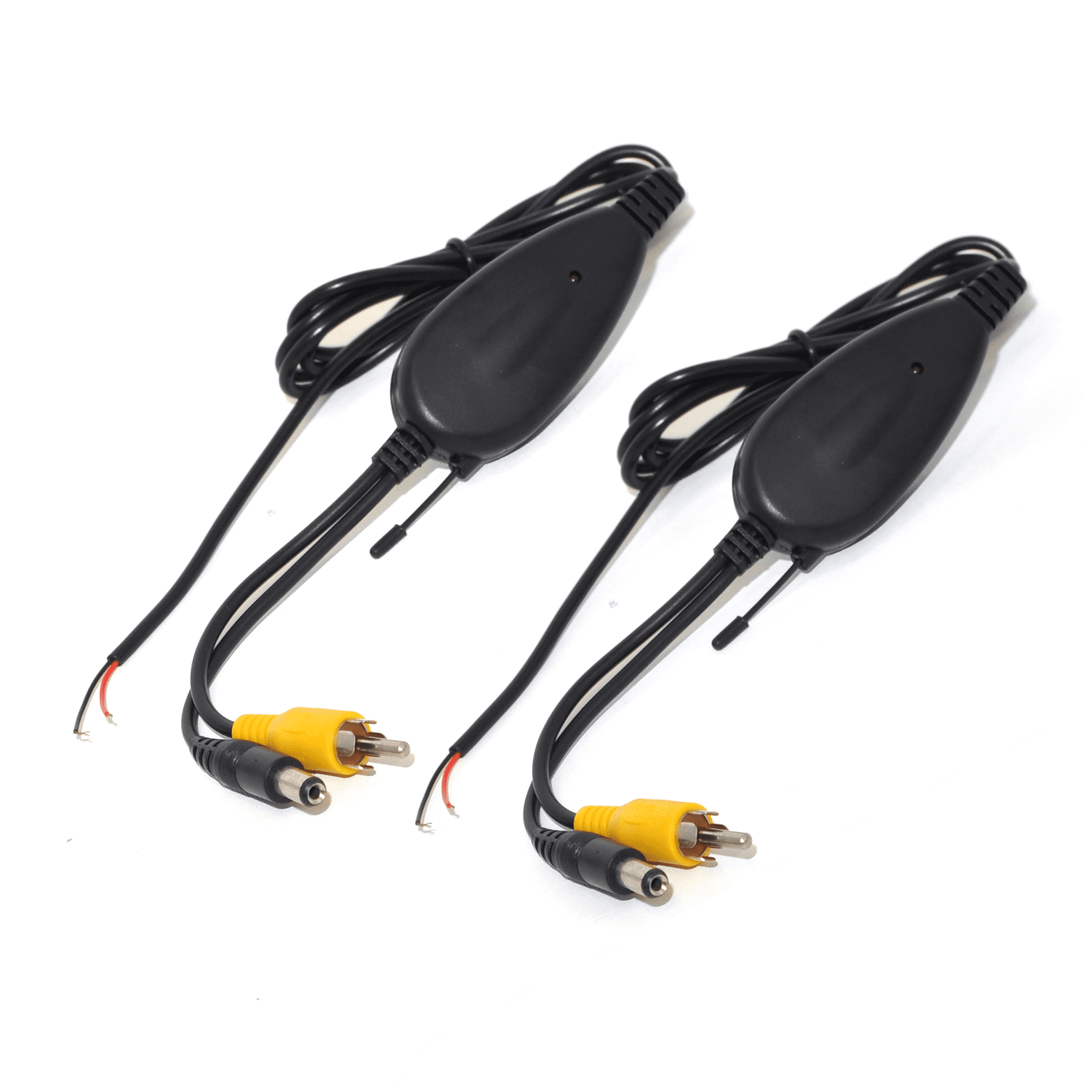

Wireless Transmitter

Wireless Receiver

Specifications

Brand

Quanan

Product Code

WIRELESS-SPRINTER+7INCHDASH
