Wireless Video Parking Reversing kit 7'' inch LCD Night View Colour Camera

Wireless Video Parking Reversing kit 7'' inch LCD Night View Colour Camera
Wireless Video Parking Reversing kit 7'' inch LCD Night View Colour Camera Wireless Video Parking Reversing kit 7'' inch LCD Night View Colour Camera Wireless Video Parking Reversing kit 7'' inch LCD Night View Colour Camera
Wireless Video Parking Reversing kit 7'' inch LCD Night View Colour Camera
Stock Status : In Stock
Product Code : 7''+20186+WIRELESS
Product Brand : Cnlight
£109.99
Send to a friend

Parking Camera And Display Combo

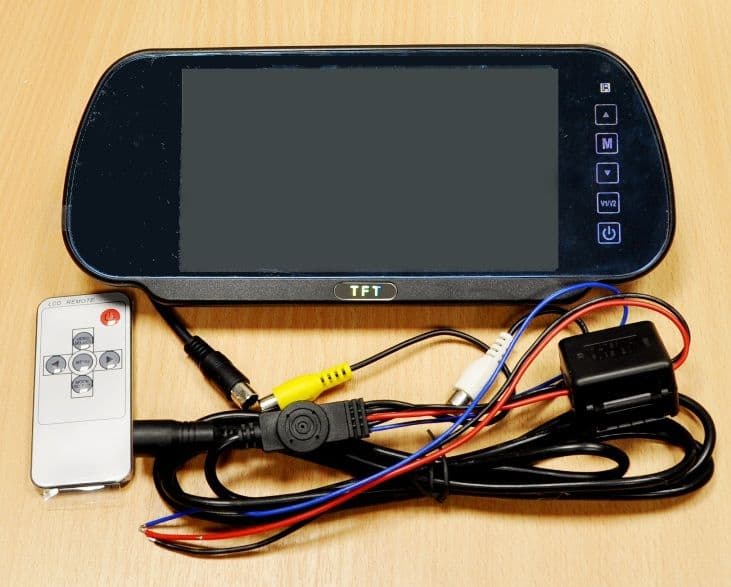

The Monitor:

This brand new LCD TFT colour monitor comes with two AV inputs

What's included:
1. Camera with 1.5 M power cable, video output socket and mirror/normal image switch socket
2. 25 mm drill saw
3. 5 meters length video cable (optional 5 meters AV extension cable can be ordered seperately, for more details see below)
4. pin plug for the mirror and normal imaging mode switch
5. instruction manual
6. 7 inch LCD display with 1.5 M power cable and 5 M AV cable
7. Wireless transmitter with DC cable and wireless receiver with DC cable

  • The monitor comes with dual video input (i.e. V1 and V2), with V1 video as the default when the reverse gear is not engaged, once the reverse gear is engaged the monitor automatically switches to V2 video input.

  • V1 and V2 video can be switched between each other (when not reversing) by pressing the V1/V2 button on the right side of display or using remote control key: 'video select'

  • The monitor automatically powers on when reverse gear is engaged, and if there is no
     video signal, the monitor can be turned on/off by pressing the power button

Features:
    • Universal colour monitor (PAL/NTSC)
    • Can be used as a screen for DVD-players, VCD players and freeview boxes in car
    • High resolution and exquisite frame design

Specifications:
    • Screen type: TFT LCD
    • Screen size: 7 inch colour
    • Resolution: 800 x 480
    • Aspect ratio: 16:9
    • Power consumption: <5 W
    • Brightness: 300
    • Power input: DV12V
    • Contrast: 350
    • Video input: 2 inputs (V1 and V2)
    • Control method: Touch buttons / Remote
    • Mounting Method: Clip-on

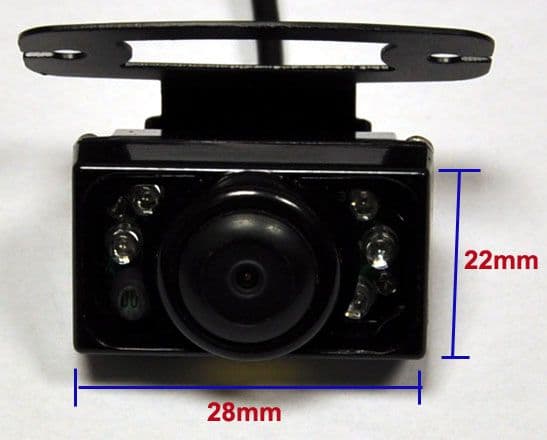

The Camera:
This 25mm water proof quality camera with night version and mirror/normal image switch option.
This camera made with OV7949 Cmos sensor to deliver a crisp and clear image day and night version, it can be used in any weather. The camera's night vision is further enhanced by the integrated infrared lights which automatically activate when lighting conditions become poor.
The camera can output standard PAL video signal and connect to any type of compatible monitor / screen in the vehicle, such as: car audio /DVD player, roof screen or any other monitors
Technical Data (Camera):
1. Image Sensor: OV7949
2. Effective Pixels: 628×582
3. Protection Category: IP67-IP68
4. Signal System: PAL
5. Resolution: 380 TV Lines
6. Shutter Speed: 1/50-60~1/15000 second
7. S/N Ratio: 48db
8. Minimum Illumination: < 1.0Lux
9. Video Output: 1.0Vp-p, 75 OHM
10. Power Supply: DC12V ± 20%
11. Current Consumption: 70mA
12. Operating Temperature: -20ºC ~ 65ºC
13. Lens Angle: 120º
14. Dimension: 25 (D)x37 (L)mm

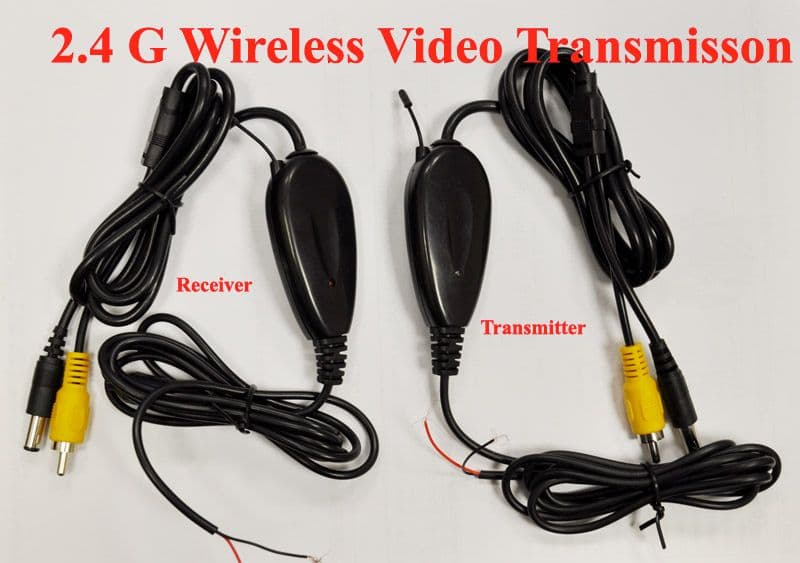

Long Distance (50 meters) Wireless Video Transmitter & Receiver:
High Quality Brand New Product Range
Converts wired rear view cameras into wireless device.
Operates up to 50 meters (~55yards)
Input power: 12V
